HUMIDIFIER / ATOMIZER

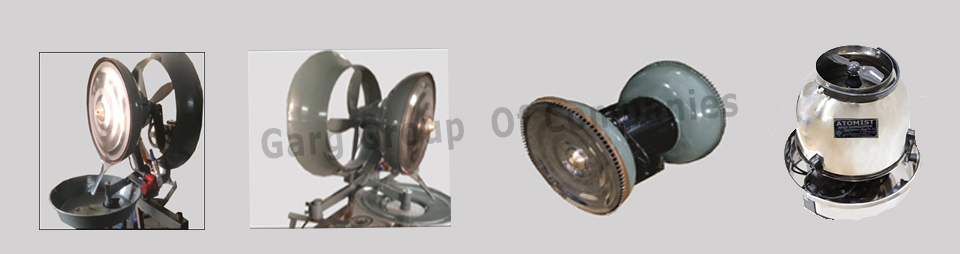

FINEMIST Energy Saver Oscillating Centrifugal Humidifier
Model: FM-OS-501
- Water Contact Parts: AISI 304 Quality Stainless Steel
- Other Parts: Rust Proof Power Coated
- Water Evaporation Capacity: 40 Litres/hr
- Water Regulator: Gate Valve
- Air Quantity: 2500 CFM
- Oscillation: 1700 Angle
- Gear Unit: Continuous Duty Double Reduction Type
- Motor Capacity: 0.75 (¾) HP, 3 Phase, 400/440Volt, 50Hz. AC Supply
- Dry Weight: 45 Kg.
- Mounting: Wall Mounting, Ceiling Hanger, Stand Mounting, Trolley Mounting etc.
- Packing Dimension: 650mm x 750mm x 750mm
- Gross Weight: 65 Kg.
FINEMIST Spot Centrifugal Humidifier
Model : FM-SS-503
- Water Contact Parts: AISI 304 Quality Stainless Steel
- Other Parts: Rust Proof Power Coated
- Water Evaporation Capacity: 40 Litres/hr
- Water Regulator: Gate Valve
- Air Quantity: 2500 CFM
- Motor Capacity: 0.75 (¾) HP, 3 Phase, 400/440Volt, 50Hz. AC Supply
- Dry Weight: 45 Kg.
- Mounting: Wall Mounting, Ceiling Hanger, Stand Mounting, Trolley Mounting etc.
- Packing Dimension: 650mm x 750mm x 750mm
- Gross Weight: 65 Kg.
FINEMIST Double Disc Centrifugal Humidifier / Atomizer
Model : AM-DD-701
- Water Contact Parts: AISI 304 Quality Stainless Steel
- Other Parts: Rust Proof Power Coated
- Water Evaporation Capacity: 40 Litres/hr
- Air Quantity: 2500 CFM
- Motor Capacity: 1 HP, 3 Phase, 400/440Volt, 50Hz. AC Supply
- Dry Weight: 75 Kg.
- Mounting: Wall Mounting, Ceiling Hanger, Stand Mounting, Trolley Mounting etc.
- Packing Dimension: 650mm x 750mm x 750mm
- Gross Weight90 Kg.
ATOMIST Spot Centrifugal Portable Atomizer
Model : SS-301
- Water Contact Parts: AISI 304 Quality Stainless Steel
- Other Parts: Rust Proof Power Coated / Plastic
- Water Evaporation Capacity: 6 Litres/hr
- Air Quantity: 500 CFM
- Motor Capacity: CSR Continuous Rated Single Phase, 200/220 Volt, 50 Hz Ac
- Dry Weight: 8 Kg.
- Mounting: Floor Mounting (Portable)
- Packing Dimension: 550mm x 450mm X 450mm
- Gross Weigh: 15 Kg.
